Welcome to AirDoor Technologies
At AirDoor Technologies, we are dedicated to providing top-tier energy recovery ventilation systems and HVAC equipment. Our mission is to empower contractors, distributors, and project managers with energy-efficient solutions that enhance air quality, promote cleanliness, and significantly reduce energy costs. Join us in creating healthier indoor environments while minimizing the transmission of airborne viruses.
What Makes Our Product Outperforming?
Our high-performance ERV systems deliver exceptional air sterilization and ensure clean indoor air with no cross-contamination between fresh and exhaust air. It features a 99.91% efficient filter, an 80% heat recovery nano-polymer exchanger, and silent, low-energy fans. The integrated control system allows easy operation, while washable stainless steel and electrostatic filters reduce maintenance costs and material cost of pre-filters and medium filters.
Our Products
Model | Fresh Air Volume | Fresh Air Volume | Exhaust Air Volume | Exhaust Air Volume | Residual Pressure | Noise | Rated Power | Weight | Overall Dimensions |
---|---|---|---|---|---|---|---|---|---|
m3/h | CFM | m3/h | CFM | Pa | dB(A) | W | kg | mm | |
AD260 | 260 | 153 | 200 | 118 | 40 | 40 | 90 | 60 | 312*590*1400 |
AD500 | 500 | 294 | 400 | 235 | 50 | 42 | 150 | 112 | 537*590*1675 |
AD1000 | 1000 | 589 | 800 | 471 | 80 | 45 | 500 | 190 | 565*850*2000 |
AD1500 | 1500 | 883 | 1200 | 706 | 100 | 48 | 750 | 230 | 920*1210*2615 |
AD3000 | 3000 | 1766 | 2400 | 1413 | 150 | 49 | 1500 | 310 | 1520*1210*2615 |
AD10000 | 10000 | 5886 | 8000 | 4709 | 200 | 60 | 5500 | 2150 | 4350*2150*2150 |
AD20000 | 20000 | 11770 | 16000 | 9417 | 300 | 62 | 11000 | 2680 | 5250*2250*2250 |

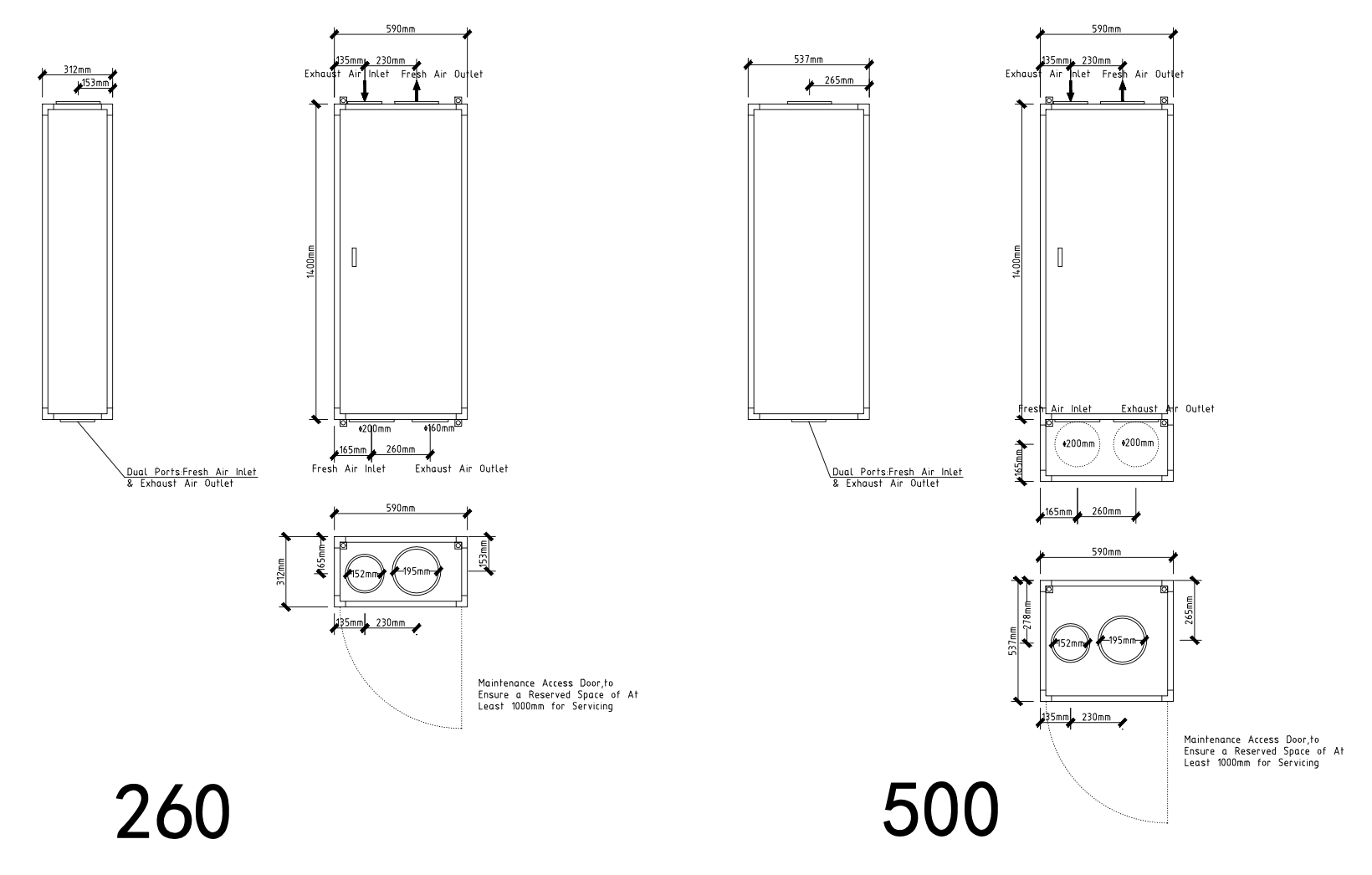

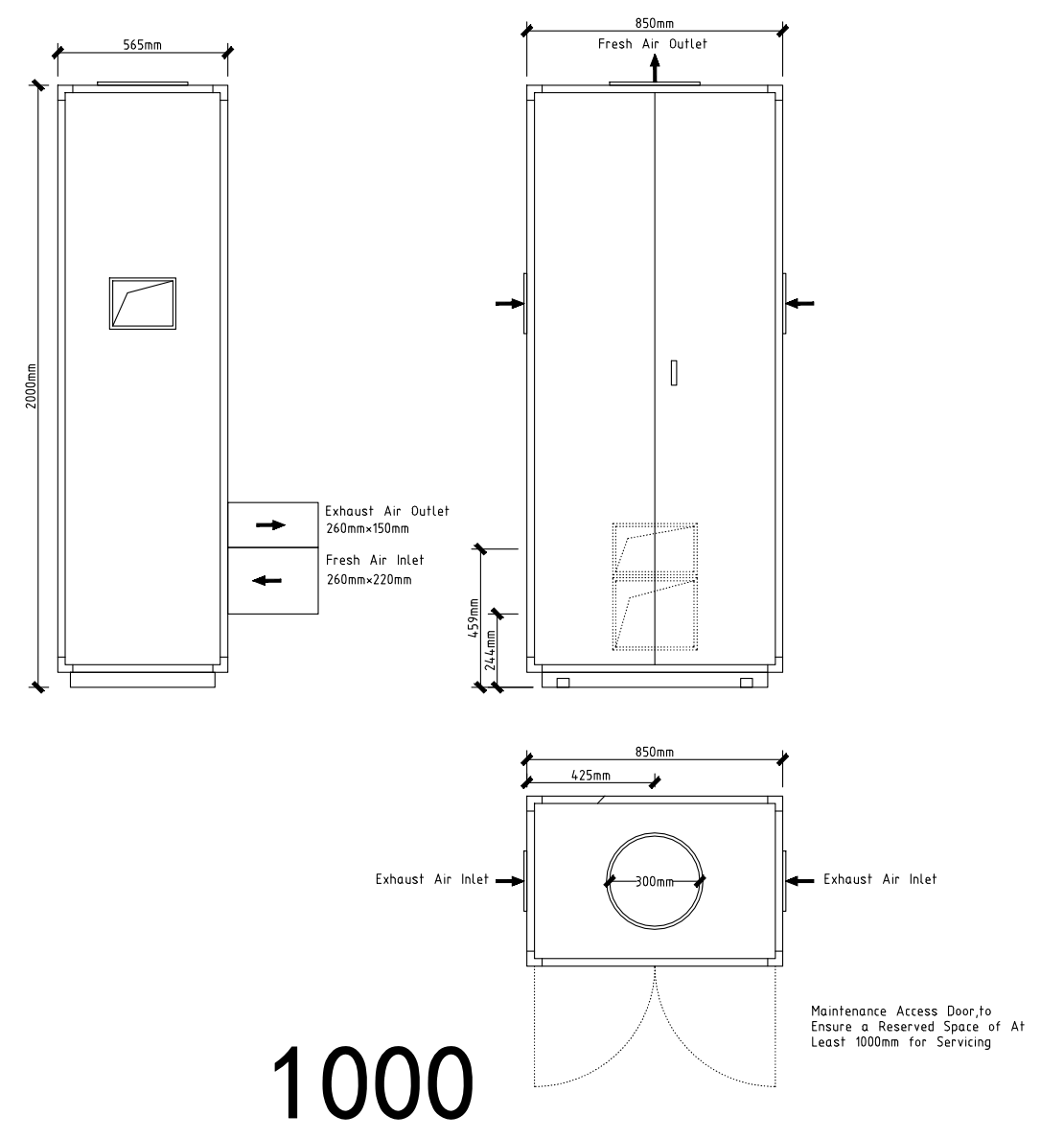

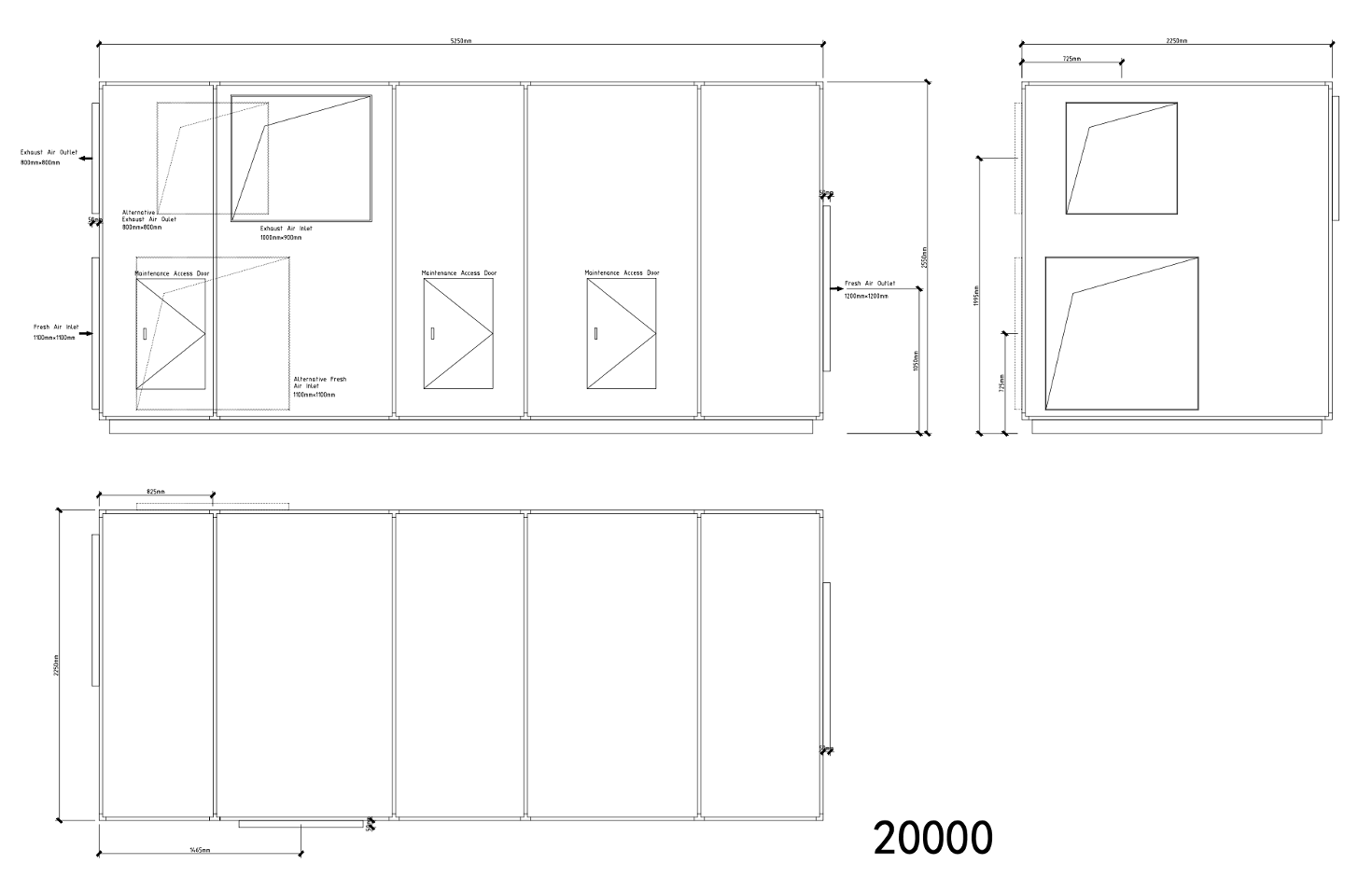

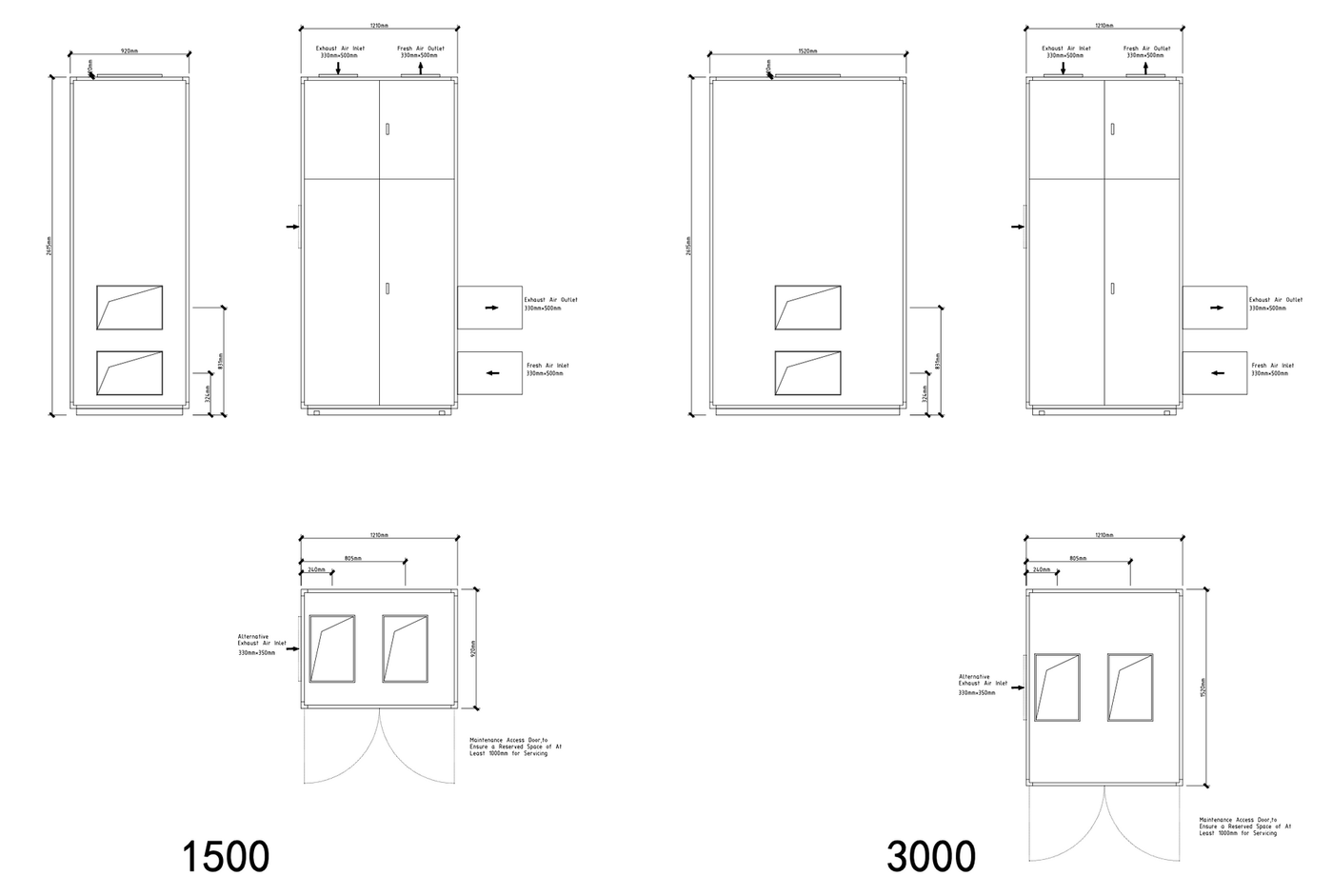

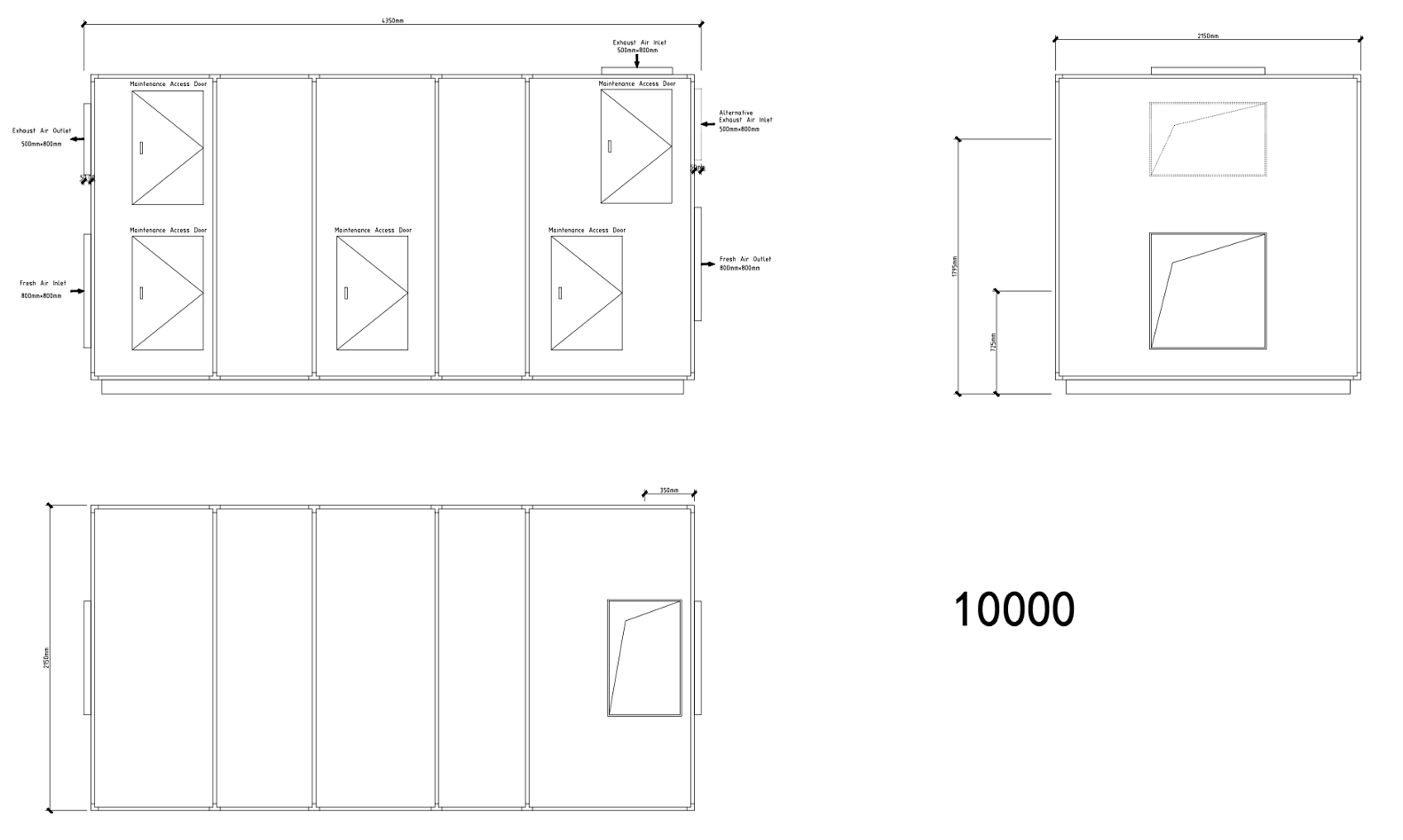

Dimension Drawings





Frequently Asked Questions
What are energy recovery ventilation systems?
Energy recovery ventilation systems are designed to improve indoor air quality by exchanging stale indoor air with fresh outdoor air while recovering energy from the outgoing air. This process helps maintain a comfortable environment while reducing energy costs.
Where are energy recovery ventilation systems typically used?
Energy Recovery Ventilators (“ERVs”) enhance indoor air quality across diverse environments, including homes, offices, schools, hospitals, hotels, senior housing, libraries, museums, and stadiums.
What benefits do energy recovery ventilation systems provide?
These systems enhance air quality, reduce the transmission of airborne viruses, and lower energy costs by efficiently managing the exchange of indoor and outdoor air. They are particularly beneficial in both residential and commercial settings.
Do you offer support for installation and maintenance?
Yes, we provide comprehensive support for installation and maintenance of our HVAC equipment and energy recovery ventilation systems. Our team is available to assist contractors and distributors with any questions or concerns.
